Hydroponics For Beginners - The Definitive Guide

The dirt-free, space-saving, water-effective method of growing soilless.

This practice is not new. In fact, the earliest records of Hydroponics dated back to the ancient civilizations. And modern Hydroponics has been used widely in the commercial greenhouses as well as at home for over 30 years.
If you're just getting started with Hydroponics, or you're looking to hone and your knowledge and skills.
You come to the right place. In this guide, you'll learn about the most important details about Hydroponics and all the basic knowledge to set up a year-round hydroponic garden of your own.
Hydroponics is a Greek term, made from two words - Hydro means water and Ponos means labor. And hence "working water" is its raw meaning. To put simply, Hydroponics is the method of growing plants without soils.

Chapter 1 - What Is Hydroponics?
Chapter 2 - The Benefits and Downsides of Hydroponics
Chapter 3 - Hydroponic Systems
Chapter 4 - Hydroponic Growing Media
Chapter 5 - Hydroponic Nutrient Guide
Chapter 6 - Grow Lights
Chapter 7 - Hydroponic Plants - What to Grow
Chapter 8 - Start a Hydroponic Garden
Hydroponic Gardening Infographic

CHAPTER 1:

What is Hydroponics?

You may have heard the word "Hydroponics" so many times. The media surely has popularized this method of growing plants. But what is its true meaning, and how did Hydroponics evolve through history? Well, you're about to find out.

Definition

Hydroponics is a Greek term, made from two words - Hydro means water and Ponos means labor. And hence "working water" is its raw meaning.

To put simply, Hydroponics is the method of growing plants without soils.

Plants are grown in a soilless medium (we'll know about it below) and come into contact with the nutrients in the water for their growth.

ch1

How Does Hydroponics Work?

Hydroponics operates on the premise that as long as you are able to provide with what they need, plants will grow well.

In this sense, Hydroponics is invented to rule out the influence of mother nature - It can be placed in a controlled growing environment. Hydroponics replaces the soil with water and the growing media. The growing media can be Perlite, sand, Rockwool, etc. Their main role is to transfer the nutrients in the water and keep the roots oxygenated.

Nutrients are added to the water and are moved to the growing media and through the plant roots usually by a water pump. The interval of each action is often set by a timer. There are several Hydroponic systems, but they all work as per to the above principle. Hydroponics is usually grown indoors or in a greenhouse. This means growers will take full management of the environment - climate, temperature, lights, ventilation, and so on.

History of Hydroponics

Hydroponic cultivation does not occur overnight. In fact, it has evolved from primitive types and has undergone lots of scientific researches by scientists. And what we have today is modern Hydroponics, which have been in a wide application by greenhouse farmers as well as Hydroponic hobbyists. Let's have a look at some of the key milestones of this method.

The 600 B.C. - The Hanging Gardens of Babylon along the Euphrates River in Babylonia are the earliest example of Hydroponic culture.

The 1000 A.D. to 1100 AD - The Aztecs developed a system of floating gardens called "chinampas" in the island city of Tenochtitlan.

The Late 1200s - Marco Polo discovered floating gardens during his trip to China

The 1600s - Belgian Jan Van Helmont performed the first experiments on plant growth & constituents.

1699 - An English man, John Woodward grew plants in water containing soil mixes. He concluded that plants take up nutrients from certain substances and mineral in the water, derived from the soil. Of course, this statement is incorrect.

The 1860s - Two German botanists, Julius von Sachs and Willhelm Knop devised the first standard formula for plant mineral nutrient dissolved in water.

The 1920s and 1930s - Hydroponics terms coined by W.F Gericke (U.C. Berkley). He experimented and popularised the practice of growing plants in a water solution.

The 1940s - Hydroponics was used on the isolated, non-arable Wake Island to supply the troops stationed here with fresh vegetables

The 1950s - Many countries around the world started Hydroponics for commercial farms and greenhouses. These include France, Spain, Italy, England, Germany, the USSR, Israel, etc.

The 1960s to now - Many Hydroponic systems are invented and are put into use, including the Nutrient Film Technique, the Drip System, Ebb & Flow, and Aeroponics. In the recent two decades, there is a stirred interest of growers into Hydroponics when it is applied to large-scale greenhouse farms around the world to provide foods for millions of people.

The NASA also considered Hydroponics as a viable method to grow and provide food for astronauts on Mars.

CHAPTER 2:

The Benefits and Downsides of Hydroponics

Before we dive into the details of Hydroponics, it's important to know about the pros and cons of this soilless cultivation method. Why is it a viable solution for future agriculture farming when the soil growing is still in place?

Why Hydroponics?

Hydroponics come up with several obvious benefits that the soils cannot compare to. Let's see. Better growth rate.

It's not uncommon to see that Hydroponically grown plants than enjoying a 20-30% better rate than those in the soil, grown in the similar conditions

Hydroponic vs. Soil Growth for Tomato Growing - Source

This is because plant roots directly contact with the nutrients rather than searching for food in the soils. All of these energies will be instead consumed in its growth, and in producing fruits and flowers.

Growers are also in charge of the whole growing system - nutrients, temperature, lights, and so on. By this, you can provide with the ideal conditions that plants require.

Hydroponics saves water

It is estimated that agriculture consumes 80% of fresh water in the US.

Meanwhile, the FAO predicted that the food production would increase by 70% when the population hugely expands.

That would be a huge issue to deal with for future farming.

It's when Hydroponics is adopted as a viable solution. This soilless growing method uses only 10% water in comparison to soil agriculture. It is able to do that because of its efficient recirculated system. Hydroponic plants get the sufficient water while the run-off ones are captured and get back to the system.

No soils needed.

This comes with two great benefits:

(1) You can grow crops anywhere whether in arable or heavily contaminated places. It saves the lands by growing plants in convenient locations like large-scale indoor greenhouses, or even in your apartment.

(2) All of the weeds and soil-related pests and disease are eliminated in a Hydroponic system.

Effective use of nutrients

All nutrients are added to the solution, and you are 100% controlling giving the specific amounts of foods (nutrients) that plants need. Unlike the soil, nutrients are not lost because they are held in the reservoir.

Potential Downsides of Hydroponics

Initial expenses

Upon starting, you are sure to make some investments to get necessary equipment for the system, including a hydroponic air pump, timer, lights, air filters, fans, containers, growing media, nutrients, and etc.

Technical knowledge and experiences.

Depending on the scale and types of your systems, you'll need to own specific knowledge to set up, maintain and monitor. You'll also need to know how plants work in Hydroponics. Don't worry about these issues, because you're reading this now.

System failure and power outage.

The plants are depending on you for their survival. In case a power outage happens, they face a great risk of death in a few hours when the plant roots are stopped watering and get dried.

Organic product debates.

There are still oppositions of many people about the USDA's decision to get Hydroponically grown foods certified as organic. This is because it is still questionable whether Hydroponic plants will get microbiomes as they are in the soil.

The Wick System

This system is considered the most simple type of Hydroponic system. As the name means, this type works by pumping the nutrient solution from the reservoir up to the plants via the capillary movement like a wick into the growing media of the grow tray.

Deep Water Culture

DWC is an active recovery Hydroponic system. It works by hanging a net pot with plants held by a floating Styrofoam platform so that the roots are submerged with the nutrient solutions.

Nutrient Film Technique (NFT)

NFT works by continuously flowing nutrient solutions onto the grow tray, so it doesn't need a timer. The solutions then run through the roots system of the plants till its reaches the channels' end then drains back to the reservoir. It is able to do that because the tube is slightly downward. NFT does not need any growing medium.

Ebb and Flow (Flood and Drain)

Ebb and Flow method works by using a timer to set the pump to pull the nutrients from the reservoir to the grow tray periodically. After the nutrient surrounds plants' roots, it drains back to the system.

Drip Systems

In Drip systems, growers use a timer to set the pump to draw the nutrient solutions through a network of drip lines. These drip lines will drop tiny amounts of water onto the plants.

Aeroponics

Probably, the most high-tech type among the six. In this type of system, plants hung in the air, so no growing media are used. A timer controls the nutrient water pump to spray onto the root systems constantly. The spray cycle is quite quick because the roots are exposed to the air and need sufficient moistures.

For beginners, it's better to start with something easy first. I recommend the passive system like the Wick, a variation of the Deep Water Culture - the Kratky Method. It is easy to set up and is fairly affordable. For active systems, you can begin with Deep Water Culture (active and recirculation DWC), Ebb & Flow and NFT as starters.

CHAPTER 4:

Hydroponic Growing Media

When the soils are eliminated, you need some materials to hold the plants as well as transmitting moisture, nutrients, and oxygen to the plants' roots. A growing medium does that job. There are so many growing media around us. Read on to know.

What Makes a Good Growing Medium

There are limitless growing media around us. Even the air can be a great material as long as it can provide plant roots with oxygen, moisture, and nutrients.

When choosing a growing medium for your Hydroponic system, these are the great traits that you should take into account:

Good aeration and drainage - does your medium hold the moisture and oxygen well?
Lightweight enough to work with and carry around.
Reusable.
pH neutral.
Not costly.
Organic made and environmentally friendly.

Many different types of grow medium can be used in hydroponics. There really is no right answer to the question of what hydroponic grow medium works the best. It varies depending on what you’re growing, the type of hydroponic system you’re using, and your personal preference. There could be several grow mediums that could fit your needs which may bring it down to price and availability. The most 7 common mediums are Rockwool, Oasis Cube, Expanded Clay, Coco Chips or Fiber, Perlite, Vermiculite, and Rock. Click here to visit our Grow Mediums website page for more information.

CHAPTER 5:

Hydroponic Nutrient Guide

What plants require are still the same in any environment - organic compost (C, O, N, H), macro and micronutrients. However, plants grown hydroponically don't have the similar ways to get the necessary nutrients they need.

What Plants Need

To survive and grow, plants need:

Oxygen
Carbon Dioxide
Lights
Water
Nutrients

Plants get oxygen and carbon dioxide from the environment for respiration.

Lights supply plants with energy, which is used in the photosynthesis process to make foods. They get lights from the natural lights of the sun or artificial lights from grow bulbs.

Water gives plants moisture.

Nutrients in the water are what the soilless growers are in total control to let plants reach their full potential growth. They are what we are going to discuss.

Macronutrients

As the name implies, Macronutrients are the ones that plants need in large amounts.

Nitrogen (N)

Nitrogen is the primary food for plant growth, especially the vegetative growth phase. No nitrogen, no leaves produced. Essentially, it plays the vital role in:

Leaf and stem growth. And its colors and sizes.
Chlorophyll, amino acids, co-enzymes and protein synthesis

Phosphorus (P)

Phosphorus is vital for photosynthesis and is one of the components of DNA, the genetic memory unit of plants, which is involved in seed production and plant vigor. Plants require Phosphorus in large amounts at the early phase of seedling, germination and flowering stage. So it is responsible for the formation of:

Seeds.
Roots.
Flowering.
Fruits

Potassium (K)

Potassium is used in all stages of plant growth. It helps synthesize sugar, starches, and carbohydrates. It also plays a certain role in the development of roots, stems, and flowers. Plants with sufficient Potassium have good resistance to bacteria and insects.

Calcium (Ca)

Fast-growing flowers and vegetables need Ca nearly as much as macronutrients. It is necessary for cell formation and development.

Magnesium (Mg)

Again, fast-growing plants also need Mg in large amounts. Mg is essential to chlorophyll production. It helps create the oxygen through photosynthesis and is recognizable in healthy and vigorous plants.

Sulfur (S)

Sulfur the components of 21 amino acid that form protein, many hormones, and vitamins, including vitamin B.

Micro Nutrients

Micronutrients are required in smaller amounts. Yet, they still play an important role in plant growth.

Zinc (Zn)

Zincs work other elements to form chlorophyll. Important for stem growth, and vital catalyst for most plants' enzymes.

Manganese (Mn)

MN aids in nitrogen utilization along with iron in the production of chlorophyll.

Iron (Fe)

Needed for chlorophyll synthesis and is important to the enzyme system.

Boron (Bo)

Combined with Calcium in forming cell membranes, and chlorophyll

These are by no means a complete list of micronutrients. But take care of the macronutrients first, and don't let plants get too deficient and excessive of these micronutrients, and you are going fine.

However, getting to know all the required nutrients that plants need are not enough. In reality, certain nutrients are only soluble at different pH levels, which are going to go into details.

How does pH affect nutrient availability?

The chart shows vital plant nutrients and the levels of pH to which plants can take up the nutrients.

As you can see, not all nutrients are available at the same pH level. Normally, macronutrients (N, P, K) are soluble in the middle of the lines. Meanwhile, micronutrients (trace elements) are available mostly in the pH middle level, and some are at the lower left end of the pH level.

You will notice that there is a sweet spot. That is a little left of the pH chart, namely from 5.5 to 6.5. So the good rule of thumb for plants to absorb necessary nutrients is to keep your solution at the above level.

How to Create/Mix a Hydroponic Nutrient Solution

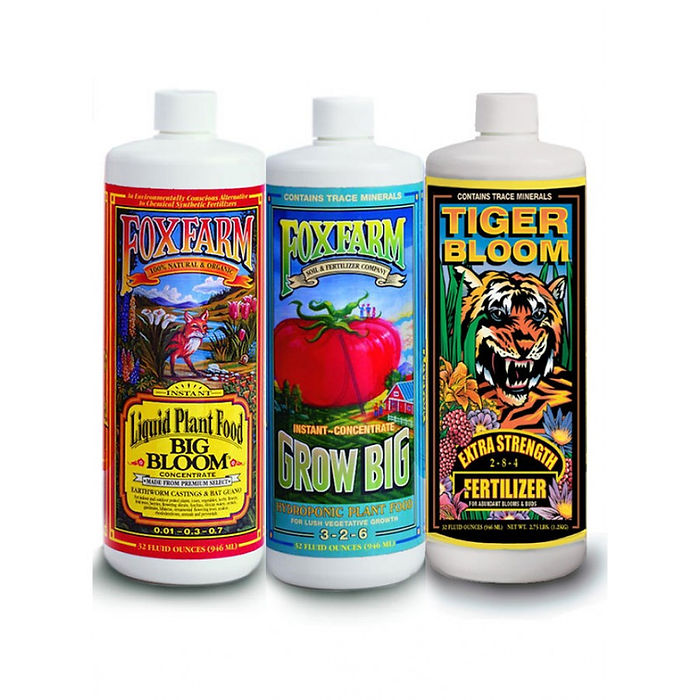

Anyone entirely new to Hydroponics should start with a proven and already made nutrient package for your Hydroponic systems. If you want to save the time and want the nutrient step as simple as possible, sticking with the Hydroponic available nutrient products from your local store also makes sense. You can learn how to choose the best hydroponic nutrients for your system from our post.

If you accumulate some experiences, you can make your nutrient mix.

There are some recommendations when choosing the nutrient items from the market:

Get the nutrient designed specifically for Hydroponics. Nutrients for the soil are not the same as these for Hydroponics.
Choose the 3 part solution. You can create and mix different formula later for the different growth phase.

After you have mixed the nutrient solutions in appropriate dosage based on the manufacturer instruction, don't forget to

Measure the pH level of your solution, and adjust it to the 5.5 to 6.5 level.
Check the nutrient mix temperature. Too high of the temps can cause plants' death. Too low and it can stun plants' growth. So keep it at 68 - 72 degrees Fahrenheit.
Regularly check the pH level, the ppm of the nutrients in order to adjust it accordingly. Change the reservoir water and nutrient solution several times a month.

CHAPTER 6:

Grow Lights

How do you grow plants indoors all day without the lights? Or your outdoor space doesn't get enough sunlight.

When it comes to lightning, the sunlight is still the best. But technology makes the artificial light much more viable and bring almost the similar results as natural light.

Why Do Plants Need Light?

For survival, plants need foods. However, they don't actively seek the foods like the human. Instead, they use sunlight to make food (sugars) through a process called photosynthesis.
Plants store the sunlight's energy in a green pigment of their leaves, called chlorophyll.

This can be explained by the reaction:

Carbon dioxide + water + (light energy) --> glucose + oxygen

CO2 in the environment react with water from plants roots under the sunlight. The sugar (food), glucose is created in the process of photosynthesis. Then it is used for respiration or converted into starch and stored.

Types of Grow Lights

When it comes to grow lights, there are a large variety of types and sizes. But in the end, they all come down three main categories - High-Intensity Discharge (HID), Fluorescent, and LED Fluorescent.

This perhaps the most popular choice for home gardeners, largely because of its cost, its acceptable efficiency. There are two types of Fluorescent lights - CFL and Tube-style lights.

CFL (Compact Fluorescent Lights)
CFL lights are the inexpensive twisty bulbs that can be found anywhere near your living. Since they are short and don't produce lots of heat, they can be placed near plants and are great bulbs for small set-ups.

Tube-style Fluorescent lights

There are several kinds, including the T5, T8, T12. Among them, T5 lights are the most used and the most efficient.
They are much wider than CFLs and usually comes with many bulbs arranged paralleled one another in a panel.

HID (High-Intensity Discharge)

HID lights are more efficient than fluorescent ones. They deliver more lights per watt as well more heats. So they tend to get hot fast and need much ventilation.

HPS (High-Pressure Sodium)

High-Pressure sodium bulbs give off more light in the yellow and red range of the spectrum.
So even though they can be used in all growing phase of plants, they are more favored towards the fruiting and flowering plants.

MH (Metal Halide)

MH emits light at the blue range of the spectrum. Hence, it's better suited for the vegetative phase of plants.

CMH (Ceramic Metal Halide )

Ceramic Metal Halide (CMH) lights seem like MH, but it works quite differently and more effectively.
CMH has a much wider light spectrum than MH and HPS. And it has better a life-span than the two.

LED (Light Emitting Diode)

LED lights come later in the indoor gardening world. But it is such an efficient method compared to other lights. They produce much light with little electricity. LEDs are incredibly lightweight. They run cool and usually have built-in cooling out of the box. LEDs are made up of many diode and growers can customize which light wavelength/light colors they need for plants. However, LEDs are expensive, and they tend to take lots of space.

Grow Light Buyer Tips:

If you are total beginners on a budget and your setups are small, CFLs are a great choice. They are relatively inexpensive and give enough lights for smaller, stealthy grow areas. CFLs work great for small plants that require not much light.
Want a better solution for your plants at each growth phase? You can stick with the HPs/MH lights. MH/CMH lights will be used for the vegetative and other phases while HPs are used for the flowering phase.
If your budget is not a problem, and you want something that is modern, durable, energy-efficient, go with long-spectrum LED lights.

Besides the weather that brings great heat to your growing system, grow lights are also the main cause that increases your system's temperature. In that case, you'll need to have some ventilation methods.
If your budget is large, consider getting a water chiller to assure your plants' best-growing condition.

CHAPTER 7:

Hydroponic Plants

The Hydroponic guide would be incomplete without a chapter on what plants can be grown hydroponically.

What kinds of plants that thrive in Hydroponics?
Keep reading.

Which Plants Are Best Grown with Hydroponics

You can grow anything in Hydroponics provided that you create a proper set-up and supply plants with sufficient nutrient balance. But you should not take that mindset and grow anything you want.
This is because some plants will grow absolutely well in Hydroponics while others do not bring expected yields. At the same time, some plants need you for their special care and installation to survive. To give some recommendations for beginners, it's better that you begin with something easy and thrives in Hydroponics first. Let's go to the list

Vegetables: Lettuce, Spinach, tomatoes, kale
Herbs: Basil, chive, oregano, mint
Fruits: Strawberries, hot peppers

These types of plants are fun to grow, work great in Hydroponics and are not a pain to start with.

What Not To Grow First?

This does not mean that you cannot grow these plant kinds. They are just harder to grow and will require special care. Meanwhile, most of the time, the yields are not as good as in the soils. However, if you want to experiment and find growing the specific plants you want the most enjoyable or if you are experienced growers, don't forget these plants.

Deep Root crops. Some root plants require lots of depth for the root systems. You will need to support the roots, and the media must be large and deep enough for the root to grow. These plants include potatoes, carrots, turnips.

Large plants that require spaces. You should stay away from melons, squash, pumpkins, corn if you lack the spaces for growing. What's more, these plants are heavy, so you need to support them properly. But if you have a large area like a greenhouse, the barrier has been lifted.

CHAPTER 8:

Start a Hydroponic Garden

Now that you have had enough knowledge about Hydroponics, how its works, and its essential components, we'll explore ways to set up a hydroponic system so that you and your family can enjoy fresh vegetables all through the years. When it comes to building your own hydroponic system, there is not just one way to set it up as different systems will have different working principles. It's hard to cover thoroughly; so give Jake's Jungle a call. We have useful resources here in our shop. Building a soilless system is not just valuable for your family's kitchen, but it's fun as well.
